Welcome to Autotech Engineering. Sydney's Premier Tuning and Automotive engineering specialist.
Nissan »

Navara

Navara Kits:


STX-550 - Diesel Tuning

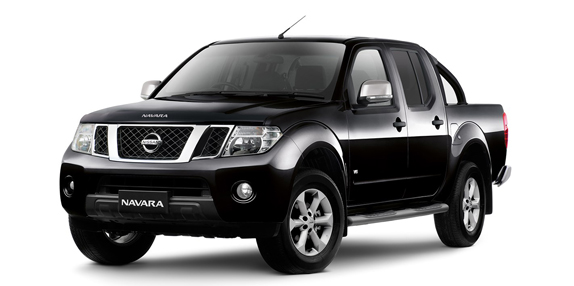

D40 NAVARA 3.0LT 2010-2014 V9X V6TD

Plug & Play Harness ONLY avaliable at Unichip Authorised agents!

The Unichip version Q4 fitted to this D40 Navara V6 T/D increased the power by 20.2kw at the wheels, see the dyno power results below:

Power Increase displayed on the graph below:

From a stock 140kw at the wheels to an amazing 162.0kw at the wheels at 3000rpm

The "Low down" torque displayed on the graph below:

Increased from 410nm to 500nm at 2040rpm.

How does the Unichip work on your Nissan 3.0LT V6TD?

• Boost Control: Unichip has complete 3D control over boost pressure across the entire operating range of the engine. This allows the Unichip Trained technician to increase the boost pressure as required. This helps in keeping the Air Fuel Ratios within a safe limit.

• Injector timing: This is a unique Unichip feature to have complete 3D control of injector timing.This means we can control the exact time they open to achieve optimised fuel burn. This will result in lower exhaust gas temperatures and greater engine longevity.

• Fuel Rail Pressure: Unichip has full 3D control of Fuel Rail pressure, the simplest way to increase power on a turbo diesel. However there are rules to follow when increasing fuel rail pressure, these are taken into consideration from all of our trained Unichip Authorized agents.
• Throttle Booster: This feature enables the Unichip Q4 to achieve a faster throttle response and reduce turbo lag. Some people pay upward of $800 for a pedal booster kit. This is a standard feature in the Unichip Australia Plug & Play.
• Water temp Protection: This is the "built in" safety feature of the new Unichip Q4 we have the ability to monitor engine temp via the coolant temperature sensor. This allows the Authorized Unichip agent to manipulate the tune on a sliding scale as the engine temperature rises. Meaning: As the engine temperature rises the Unichip Q4 will intercept a signal, removing the fuel, boost and timing, slowly and in a controlled fashion to ensure it maintains maximum power and torque output, without compromising the engine.


Optional Extras

• Map Select: This option enables the 5 map capability of the Unichip Q4. This means you can access the 5 maps which can be tailored to your requirements. EG, High Power Map, Towing Map, Standard Map, Immobiliser Map or Even a High Boost or Low Boost Map. Speak to your Authorized Unichip agent to tailor 5 tunes to suit your application.

• EGT protection: This is the "add on" safety feature of the new Unichip Q4 we have the ability to monitor engine exhaust temp via the Unichip EGT sensor. This allows the Authorized Unichip agent to manipulate the tune on a sliding scale as the Exhaust temperature rises. Meaning: As the exhaust temperature rises the Unichip Q4 will intercept a signal, removing the fuel, boost and timing, slowly and in a controlled fashion to ensure it maintains maximum power and torque output, without compromising the engine.

Plug and Play pricing does not include fitting and tuning.

SKU: PPNIS16.3

MODEL: 2010-2012
ENGINE: V9XV6TD 3.0
DRIVER: W/P
UNI Q4

Navara - Petrol Tuning
The 2001 Petrol Nissan Navara was fitted with a Unichip Version Q and produced 89.4rwkw after a custom dyno tune. It also produced 190nm of torque at 1100rpm!.
The 2001 Petrol Nissan Navara was fitted with a Unichip version Q.

It had a full custom dyno tune, the red lines's in the dyno graph was the before power reading and the blue is the after tuning readings.

The before figures were 74 rwkw and a torque of 135nm, after custom tuning it we managed to extract 89.4 rwkw and a torque figure of 190nm at 1100rpm.

That is 20% up in power and a whopping 40% up in torque.

The 2001 Petrol Nissan Navara was fitted with a Unichip Version Q and produced 89.4rwkw after a custom dyno tune. It also produced 190nm of torque at 1100rpm!.
