Welcome to Autotech Engineering. Sydney's Premier Tuning and Automotive engineering specialist.
Porsche » Cayenne » Cayenne

Turbo V6 - Diesel Tuning

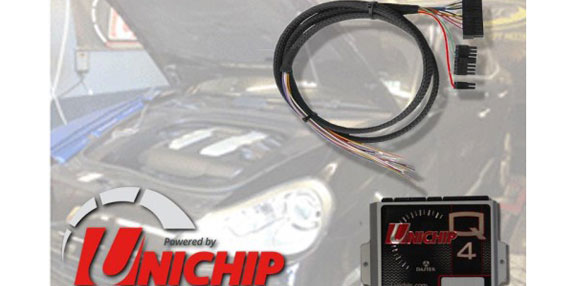

The Porsche Cayenne Turbo Hardwire Unichip, ONLY available at Unichip Authorised Agents!

The Unichip for Porsche Cayenne Automatic!
With an impressive 25kw gain in power and a low down increase of torque at 1800-2000rpm of 60nm this Cayenne has nearly no Turbo lag, allowing you to take off safely when pulling out in traffic and enjoying the top end power is a bonus, with customer reporting up to 80kp per tank increase in fuel economy!

The power increase displayed on the dyno Graph below is:

20% Increase!

- Standard 132 kw at the wheels
- Unichip 158.9 kw at the wheels

The Torque increase displayed on the dyno graph below is:

62nm increase!

- Standard 440 nm at the wheels
- Unichip 502 nm at the wheels

ONLY available at Unichip Authorised Agents!

How does the Unichip work on your Porsche Cayenne?

• Boost Control: Unichip has complete 3D control over boost pressure across the entire operating range of the engine. This allows the Unichip Trained technician to increase the boost pressure as required. This helps in keeping the Air Fuel Ratios within a safe limit.

• Injector Timing: This is a unique Unichip feature to have complete 3D control of injector timing.This means we can control the exact time they open to achieve optimised fuel burn. This will result in lower exhaust gas temperatures and greater engine longevity.

• Fuel Rail Pressure: Unichip has full 3D control of Fuel Rail pressure, the simplest way to increase power on a turbo diesel. However there are rules to follow when increasing fuel rail pressure, these are taken into consideration from all of our trained Unichip Authorised agents.

• Throttle Booster: This feature enables the Unichip Q4 to achieve a faster throttle response and reduce turbo lag. Some people pay upward of $800 for a pedal booster kit. This is a standard feature in the Unichip Australia Plug & Play.

• Water Temp Protection: This is the "built in" safety feature of the Unichip Q we have the ability to monitor engine temp via the coolant temperature sensor. This allows the Authorised Unichip agent to manipulate the tune on a sliding scale as the engine temperature rises. Meaning: As the engine temperature rises the Unichip Q will intercept a signal, removing the fuel, boost and timing, slowly and in a controlled fashion to ensure it maintains maximum power and torque output, without compromising the engine.

Optional Extras

• Map Select : This option enables the 5 map capability of the Unichip Q4. This means you can access the 5 maps which can be tailored to your requirements. EG, High Power Map, Towing Map, Standard Map, Immobiliser Map or Even a High Boost or Low Boost Map. Speak to your Authorised Unichip agent to tailor 5 tunes to suit your application.

• EGT protection: This is the "add on" safety feature of the Unichip Q4 we have the ability to monitor engine exhaust temp via the Unichip EGT sensor. This allows the Authorized Unichip agent to manipulate the tune on a sliding scale as the Exhaust temperature rises. Meaning: As the exhaust temperature rises the Unichip Q4 will intercept a signal, removing the fuel, boost and timing, slowly and in a controlled fashion to ensure it maintains maximum power and torque output, without compromising the engine.

Plug and Play pricing does not include fitting and tuning.

SKU: PORSCHE85Q

MODEL: 2010- present
ENGINE: 3LT V6
DRIVER: N/A
UNI: Q

Have a question about Cayenne Turbo V6 - Diesel Tuning?
